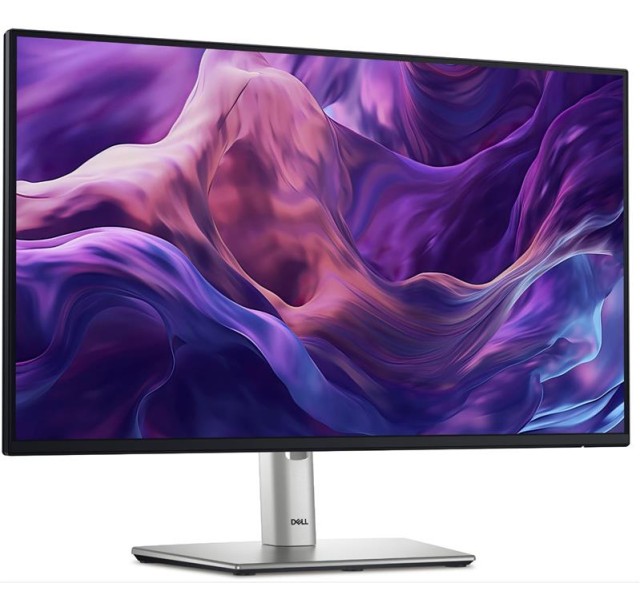

Монітор DELL 23.8" P2425HE HDMI, 2xDP, USB-C, IPS, 100Hz, sRGB 99%, Pivot

Technical Information

Diagonal Viewing Size

23.8"

Preset Display Area (H x V)

527.04 mm x 296.46 mm (20.75" x 11.67")
Area: 156,246.28 mm2 (242.18 inches2)

Panel Type

In-Plane Switching (IPS) technology

Display Screen Coating

Anti-glare with 3H hardness

Maximum Preset Resolution

1920 x 1080

Refresh rate

100 Hz

Viewing Angle

178° vertical / 178° horizontal

Pixel Pitch

0.2745 mm x 0.2745 mm

Pixel Per Inch (PPI)

92.53

Contrast Ratio

1,500: 1 (typical)

Aspect Ratio

16:9

Backlight Technology

LED edgelight system

Brightness

250 cd/m2 (typical)

Response Time

5ms gray-to-gray (Fast mode)
8ms gray-to-gray (Normal mode)

Color Support

Up to 16.7 million colors

Color Gamut

99% sRGB

TÜV Eye Comfort

Yes, 4-Star

Ficker Free

Yes

Connectivity

• 1x HDMI 1.4 (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz TMDS as per specified in HDMI 1.4)
• 1x DP 1.4 (HDCP 1.4)
• 1x DP-out (1.4) with MST (HDCP 1.4)
• 1x RJ45
• 1x USB 3.2 Gen1 Type-C upstream (Alt. mode with DP1.4) with up to 90W PD
• 3x USB 3.2 Gen1 Type-A downstream
• 1x USB 3.2 Gen1 Type-C downstream with up to 15W PD (data only)

USB Power Delivery

Yes, up to 90W via USB-C upstream (Alt. mode with DP1.4) port, and up to 15W via USB-C downstream port

Adjustability

Height, Tilt, Swivel, Pivot

Height

Up to 150 mm (5.9")

Tilt

-5°/+21°

Swivel

-45°/+45°

Pivot

-90°/+90°

Daisy Chain Availability

Yes

Dell Power Button Sync

Yes, via USB Type-C upstream port

Dell Display Manager Compatibility

Yes with Easy Arrange

Remote Asset Management

Yes

Voltage Required

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2 A (typ)

Power Consumption (Operational) (typical)

0.3 W (Off mode)
0.3 W (Standby mode)
1.0 W (Networked Standby mode)
13.9 W (On mode)
180 W (Max)
15.2 W (Pon)
49.8 kWh (TEC)

Audio Output

Optional soundbar (sold separately)

Security

Security-lock slot (based on Kensington Security Slot™)

Compliant Standards

ENERGY STAR certified monitor
EPEAT GOLD
EPEAT Climate+
TCO Certified Displays
TCO Certified Edge
RoHS-compliant
BFR / PVC free monitor (excluding external cables)
Arsenic-free glass and mercury-free (panel only)

Flat Panel Mount Interface

VESA (100 mm x 100mm)

Temperature Range

Operating: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating: -20° ~ 60°C (-4° ~ 140°F)

Humidity Range

Operating: 10% ~ 80% (non-condensing)
Non-operating: 5% ~ 90% (non-condensing)

Altitude

Operating: 5,000 m (16,404 ft) max
Non-operating: 12,192 m (40,000 ft) max

What's Included

• 1x Monitor panel
• 1x Stand riser and base
• 1x Cable tie
• 1x Quick setup guide
• 1x Safety, Environmental, and Regulatory Information

Cables Included

• 1x Power cord
• 1x DP-to-DP cable, 1.8m
• 1x USB 3.2 Gen2 Type C-to-C cable, 1.0m

Energy Class

Class D

Physical Characteristics

Height with stand (Compressed ~ Extended)

364.00 mm ~ 496.53 mm

Width with stand

538.64 mm

Depth with stand

181.75 mm

Height without stand

314.23 mm

Width without stand

538.64 mm

Depth without stand

50.03 mm

Weight (panel only - for VESA mount)

3.69 kg

Weight (with packaging)

7.24 kg
